CAMEC 3P DR - OUTER HANDLE
$43.25

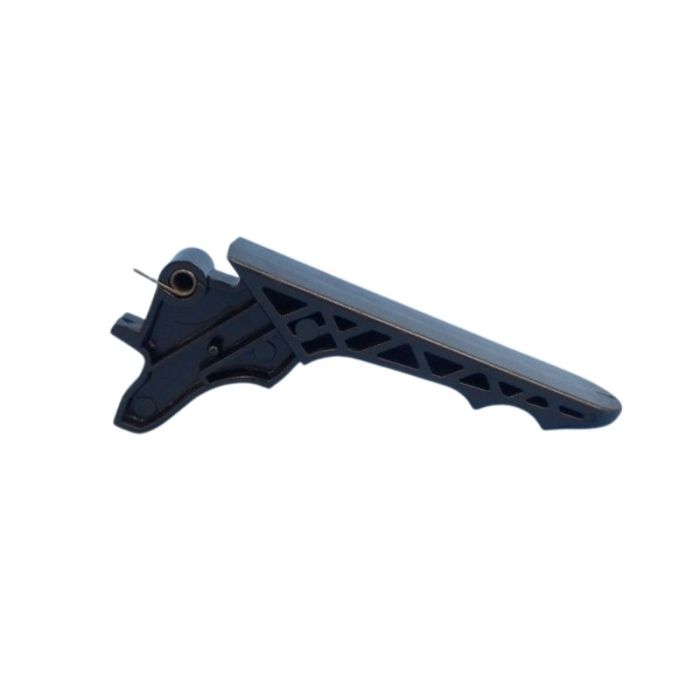

Camec 3 Point Lock - Outer Handle With Spring

PART NO - 000721
Suits Left and Right hand CAMEC 3 point locks
Suits Original and One-Key-Compatible CAMEC 3 point locks
Updated strengthened design

Contact us

{"id":41235408191554,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"000721","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"CAMEC 3P DR - OUTER HANDLE","public_title":null,"options":["Default Title"],"price":4325,"weight":20,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]}

Description

Outer Handle with spring, suit CAMEC 3 point lock. <br><br>Outer Handle with spring, suit CAMEC 3 point lock. <br><br>

Contact Us

Once the full handle is removed from the door, you need to remove the metal lock casing. There is a small black plastic catch at the base of the metal casing that holds it into the housing. Just get a small screwdriver into this to wedge the metal housing toward the top. This allows it to be removed after it clears the black catch.

To replace the new handle, it should just push into the same section. When it is in far enough the spring will click into place. Replace the metal housing until it catches under the black lower catch.
